Rheem Water Heater Not Heating [Gas & Electric]

I’ve identified the main reasons behind the Rheem water heater not heating for both gas and electric heaters from my experience. In gas water heaters, the most common culprits here:

  • No gas supply.
  • The pilot won’t light or stay lit.
  • The main burner won’t light or stay lit.
  • Defective gas control thermostat.
  • Leaky hot water faucet.

When it comes to the Rheem electric heaters, the main causes behind this issue are:

  • No power to the heater.
  • Tripped ECO or manual reset limit.
  • Faulty heating element.
  • Defective thermostat.
  • Undersized water heater.
  • And more.

However, there are many other potential reasons that can also cause this issue. I’ll discuss all the reasons and their solutions in this guide. So, let’s dive in!

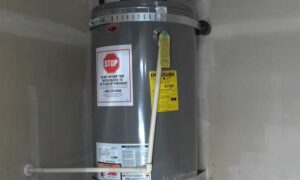

rheem water heater not heating

Rheem Water Heater Not Heating [Gas Units – How To Fix]

Let’s look at the most common reasons why your Rheem gas water heater provides little to no hot water in this section.

01. Setting The Thermostat Too Low

For the sake of starting with the issues that are ready to resolve, I have started with this one. You may be confident that you’ve set the temperature at the right level. But who knows – maybe someone else in your family has tampered with the thermostat and dialed it down.

How To Fix:

Check the position of the gas control knob in the thermostat. If it’s set too low, you’ll have to turn it up to solve the issue. Here are the temperature settings at a glance to help you select the right temperature:

  • “Low” means the water temperature will be close to 91°F.
  • “Hot” means the water temperature will be near 120°F.
  • “A” means the water temperature will be approximately 130°F.
  • “B” implies 140°F and “C” means 150°F.
  • “Very Hot” means the water temperature will be close to 155°F.
gas control knob of rheem water heater

Even if the gas control knob is set at a high temperature, you can turn up the gas control knob further. See if that helps you get hotter water. But only do it as a temporary solution and consult a qualified technician to check your heater as soon as you can.

02. No Gas Supply

You’ll also not get any hot water if there’s no gas supply. That’s because gas is the main fuel in gas water heaters. Without it, the heater won’t be able to light the pilot or the main burner.

no gas supply of rheem water heater

If you’re using a heater that runs on natural gas, make sure you’ve paid your gas bills. Otherwise, your local gas company may have cut off the gas supply to your house. A quick way to check it is to see if the other gas power heaters in your homework properly.

If nothing works, that means the gas supply to your entire house has been cut off. But if the other things work, then you have to check the main gas shut-off valve of your heater. If it’s not fully parallel to the gas lines, that means the gas supply is not fully open.

But what if you’re using a heater that runs on liquid propane? In that case, you have to check if you’ve run out of gas and the tank cylinder is empty.

How To Fix:

For natural gas users, the first thing you have to do is pay your bills if you haven’t paid them on time. If the main gas shut-off valve wasn’t in the fully open position, you have to make it fully parallel to the gas lines. That way you can ensure that your heater is getting the proper gas supply.

For liquid propane users, you can refill the cylinder if it becomes empty. Or you can replace it with another cylinder. That’s why it’s handy to have at least two tanks at a time if you run your heater on your LP. You can quickly restore the gas supply and get hot water soon.

03. Power Supply Issues

Problems with the power supply can also lead to you not getting any hot water from your heater. If there are any wiring issues or faults within the power outlet or circuit breaker, the heater won’t work properly.

circuit breaker of rheem water heater

There aren’t too many Rheem gas water heaters that have an On/Off Switch. But if you’re using the Rheem Gas Prestige Maximus heater, you’ll see such a switch. If it’s turned off, the heater won’t work and you won’t get any hot water.

How To Fix:

First, make sure there’s nothing wrong with the circuit breakers or the power outlet in your house. If you suspect there could be any issues with them, you can consult an electrician to check it out.

For users of Rheem Gas Prestige Maximus heaters, turn on the switch so that your heater works properly. If any of the wires are damaged, replace them so that your heater can work properly and provide sufficient hot water.

04. Undersized Heater

Having an undersized water heater is one of the most common reasons behind the no hot water issue. Your water heater has a limited capacity and it can’t give you unlimited hot water. It’s bound to run out of hot water if it’s pushed beyond its limits.

And that’s exactly what may have happened. If multiple people have been using hot water at the same time, then the stored hot water will get depleted. Your heater will need time to heat the next batch of water. That’s why you may not have any hot water from the heater at the given moment.

How To Fix:

As there’s nothing wrong with your heater in this case, you don’t have to do anything. You can just wait for the heater to heat the new cold water and then use it. When the water heater recovers after such an abnormal demand for hot water, you’ll be able to use it again.

But if this is a daily occurrence and you keep running out of hot water, you have to do something about it. Either you can limit the number of hot water faucets. Or you can upgrade to a new and better heater with a higher capacity that’ll fulfill the needs of your family.

05. The Pilot Won’t Light Or Stay Lit

If you want to use your heater, you have to light the pilot and it must stay lit. The pilot comes on at first, and then, it’ll ignite the main burner. There are many things that can go wrong with the pilot light.

pilot light of rheem water heater

First of all, you have to check if the pilot light in your heater stays lit. You can do it by removing the outer door of the main burner and looking through the viewport. You’ll see a small flame if the pilot is burning.

The status light in the gas control valve can also help you understand if the pilot is light. If it doesn’t light at all, it means the pilot isn’t lit. If it’s a solid color, that means the pilot is off and the thermopile is cooling down. One flash every three seconds represents the normal operation of the heater.

If the pilot isn’t lit or won’t stay lit, there are many things that could go wrong with it. Some of the common issues behind it are:

  • The pilot orifice is clogged or the pilot tube is pinched.
  • A faulty thermopile.
  • Dirty filter grate.
  • Lack of combustible air.
  • Kinked flex tube.
  • Not following the pilot lighting instructions properly.

How To Fix:

As you can see, there’s a lot can that cause pilot light issues. And that’s only the popular reasons. There are many more potential problems there. That’s why I’ve compiled a guide on Rheem pilot light issues for you.

It’ll walk you through all the reasons why your pilot light goes out and how you can fix them. You’ll also learn how you can light the pilot correctly. Hopefully, you’ll no longer have any issues with the pilot light in your heater after going through my detailed guide.

06. The Main Burner Won’t Light Or Stay Lit

You already know that lighting the pilot is important for the heater to produce hot water. The same goes for the main burner. In fact, the heater starts heating the hot water only when the main burner has been ignited.

main burner of rheem water heater

So, it’s obvious that you won’t get any hot water if the main burner isn’t lit. Just like the pilot light, there are many things that can go wrong with the main burner. All these things can keep it from burning or styling lit. The most common main burner issues are:

  • There’s air in the gas lines.
  • The gas valve isn’t fully in the open position.
  • Blockage in the inlet or exhaust pipes.
  • The pressure switch isn’t working properly.
  • The combustion chamber is dirty.
  • Malfunctioning main burner assembly.

How To Fix:

If there’s air in the gas lines, it’ll have to be purged. The gas shut-off valve needs to be moved to a fully open position if it already wasn’t there.

You also have to remove all the dirt and debris from the intake and exhaust pipes. If you get the dirt out of them, the pressure switch should start working properly. If it still doesn’t work, you’ll have to replace it.

Finally, you’ll have to check if the combustion chamber is dirty. If you see a yellow flame through the viewport, that’s a good indication that you have a dirty combustion chamber. The yellow flame comes from the main burner burning the dirt.

You have to take out the main burner and clean the combustion chamber. Make sure you’re not blocking the air inlet openings. It’s important for them to be open to let in air and burn the pilot and the main burner.

While you’re removing the dirt from the combustion chamber, clean the main burner as well. If the main burner still doesn’t light or stay lit after fixing these issues, the burner itself is most likely faulty. You’d have to replace it in that case.

07. Defective Gas Control Thermostat

The gas control valve is one of the most important components in Rheem gas water heaters. It plays a crucial role in supplying gas to both the pilot and the burner. Besides, it also regulates the water temperature as the thermostat is built into it.

gas control thermostat of rheem water heater

So, there can be a wide range of issues in your heater if the gas control thermostat doesn’t work properly. For instance, it can give too much too hot water if it doesn’t sense that the water has already reached the desired temperature set by you.

The reverse of that is also true. It can give you cold water at the hot water faucet if it thinks the water has already reached the desired temperature when it hasn’t. A faulty gas control valve can also lead to gas and water leaks.

How To Fix:

As the gas control valve is a relatively expensive component, you can’t just replace it on a whim. You should make sure that you actually have a faulty gas control valve by testing it. If it turns out to be bad, only then you should move on to replace it.

You may think that doing so by yourself is complicated. But that’s not the case. Follow my Rheem gas control valve replacement guide to learn all about testing and replacing it on your own. Hopefully, you’ll get hot water from your heater again after changing the gas control valve.

08. Low Gas Pressure

If the gas supply is completely cut off, even the pilot light won’t burn. So, you’ll have no hot water at all from your heater. But there could be instances when you get hot water from the heater but it’s not hot enough. That means it’s lower than your desired temperature.

One possible culprit, in that case, is having low gas pressure. If there is low gas pressure, the main burner won’t be able to heat the water at full potential. That’s why you’d get hot water that’s not at the right level.

How To Fix:

You have to check the gas pressure and manifold pressure. Then, you’d have to correct it if needed. The correct gas pressure for most Rheem heaters is 14.0 in. w.c. maximum or 3.5 kPa. That’s usually the case for both natural gas and liquid propane.

You can also find the minimum inlet gas pressure in the rating plate of your heater. So, you’ll have the values for both the minimum and gas pressure. Now, you can check the pressure and see if it’s in the normal range. If it’s higher or lower than that, you can contact your local gas supplier to fix it.

09. Chamber Sensor Failure

There’s a component in your Rheem gas water heater that checks whether the main burner is burning properly. That component is the chamber sensor. It senses the flame from the main burner and signals the gas control thermostat to keep supplying gas.

chamber sensor of rheem water heater

When it doesn’t sense the flame, it won’t send that signal. So, the gas supply will be shut off and the main burner will no longer burn. So, the heating of the water would stop and you’ll no longer have any hot water.

A chamber sensor is a good tool to avoid gas-related accidents as it prevents the supply of gas when the burner is off. But when the sensor goes bad, it can give faulty readings and turn the gas supply off even when it needs to be on. That may be what happened with your heater and why you have no hot water.

How To Fix:

First, you have to check whether you have a bad chamber sensor or not. Chamber sensor failure doesn’t necessarily mean that it’s bad. It could also be dirty. You’ll need a multimeter to test the chamber sensor.

Check out my Rheem chamber sensor guide to learn more about it. I have walked you through how you can test and replace the chamber sensor. You can do it all yourself or hire a professional technician to do it.

10. Tripped Combustion Shut-Off Device

There’s a safety device in your Rheem gas water heater called the combustion shut-off device. It’s designed to shut off the operation of the water heater when undesirable combustion occurs.

combustion shut off device of rheem water heater

For instance, the air inlet openings being blocked or flammable vapors being present can trip this device. So, your heater won’t work at all and you’ll get no hot water from it.

How To Fix:

The tripping of the combustion shut-off device is no joke. It’s a serious matter. So, you should immediately consult a qualified technician if it happened. He’ll guide you on what to do to fix it and get hot water from your heater again.

11. Faulty Mixing Valve

Using thermostatic mixing valves is a great practice as it can reduce the temperature of the hot water faucet. So, it acts as an extra layer of safety to protect from scalding.

thermostatic mixing valve of rheem water heater

However, thermostatic mixing valves can go bad and cause problems for you. They can be stuck in a closed position and give no hot water at all. Check all the other hot water faucets in your house.

If all of them are working fine and you can isolate the issue to one particular faucet, you could have a bad mixing valve. The temperature can also fluctuate or the water can even be too hot due to a malfunctioning mixing valve.

How To Fix:

Cleaning the maximum valves can solve the issue at times. If you live in an area with a hard water supply, the valve may have been clogged due to the sediments in the water.

So, you may able to salvage it with a thorough cleaning. However, they can also go bad, and cleaning won’t help there. Thermostatic mixing valves aren’t repairable. So, you’ll have to replace them in those cases.

12. Sediment Build Up

If you’re facing a fairly old water heater and you’re not getting sufficient hot water, mineral deposits can be the main culprit here. As time passes, sediments settle in your tank and settle at the bottom.

sediment build up inside tank of rheem water heater

So, the heater loses its efficiency and can’t transfer the hot water soon enough. If you’re facing this issue, it’s still not that serious and can be easily fixed. But if matters get worse and your tank gets corroded, it can start leaking.

You can check out the base of your water heater’s tank and see if it’s leaking. A leaky tank will also be inefficient and it’ll give you less hot water. It’s also unsafe to use the water heater in that condition.

How To Fix:

If there are mineral deposits at the bottom of the tank, you’ll have to flush the tank. Hopefully, that’ll get rid of most of the sediments and you’ll get hot water again. As a preventive measure, you should always change the anode rod on time so that your tank stays safe.

But if you haven’t changed your anode rod when required, your water heater’s tank will start leaking. No quick fix is available in case of a leaking tank. Your only option will be to replace the entire tank.

But that’s only if the source of the leak is the tank itself. There can be other sources from which the tank is leaking. Check out my Rheem heater water leakage guide to learn about all the possible areas of a leak. You’ll also learn how you can fix them in detail.

13. Leaky Or Open Faucet

If you have a hot water faucet that’s leaking, it’ll keep depleting the hot water in the tank. So, the main burner in your heater will have to become active again to heat the water.

leaking faucet of rheem water heater

The same thing happens if you leave a hot water faucet open for a long time. The hot water will be consumed and new cold water will have to be heated. That’s why you may not get sufficient hot water when you need it.

How To Fix:

If you left a hot water faucet open, the fix is simple. All you have to do is close it and that’ll solve the issue. However, if you have a leaky faucet, you’ll have to replace it with a new one.

You have to make sure that all the hot water faucets are closed when they’re not being used. Otherwise, you’ll keep running out of hot water now and again. Even a small leak on the hot water side can cause issues. So, close the faucets all the way and replace the leaky ones to fix this problem.

14. Plumbing Crossover

If you’re getting cold water from the hot water faucet at full pressure, it could be due to a plumbing crossover. It’s a clear case of cold water being supplied to the hot water faucet.

If there was a blockage or mineral deposits in the pipe, you’d have either gotten no or little hot water. But as you’re getting cold water, there’s a strong chance that there’s a cross-connection somewhere.

That faulty connection is allowing the cold water to come through the hot water faucets. However, it can also be the result of a bad thermostatic mixing valve. So, make sure that you rule out the mixing valve first.

How To Fix:

If there’s a mistake in the plumbing, then you’ll have to get a plumber to fix it for you. Getting cold water at a specific faucet is also a strong sign of having a plumbing crossover. As soon as the plumber fixes the issue, you should get sufficient hot water without any issues.

15. Cold Water Supply

Sometimes, there may be nothing wrong with your water heater and you’d still get colder water. You have the cold weather to blame in those instances. The truth is that it’ll just take the heater longer to heat the water if the cold water supply gets even colder.

Moreover, the pipes may be ice cold at the same time. So, the hot water will lose some of its heat when it goes through the pipes. The longer the distance between the hot water faucet and the tank, the colder the water will be.

How To Fix:

There’s no quick solution to this problem. It’s normal that the heat cycle will be longer when the water supply is colder. But you can take an extreme preventive measure if you want.

You can insulate the pipes so that the external weather has minimal impact on the pipes. But even then, you have to be prepared that colder water will take longer to heat up compared to usual water.

Rheem Water Heater Not Heating [Electric Units – 10 Easy Fixes]

I’ll discuss the main reasons why your Rheem hot water heater is not heating the water properly in this section.

i) No Power To Heater

The first thing you should always check when your electric heater isn’t working is the power supply. Check if the heater has power. If it doesn’t, it could be a simple issue.

More often than not, the circuit breaker will be tripped or the fuse to the heater will be blown. Besides that, there may have been a power outage for which the electric heater got turned off.

tripping the circuit breaker of rheem water heater

Remember that a circuit breaker that’s in the correct position will also stop the power supply if it goes bad. If you’ve had a recent storm, there’s a strong possibility that your circuit breaker has gone bad.

Check the other electrical devices in your house. If none of the other electric components in your home are working, it’s most likely a power outage.

How To Fix:

The heater will be connected to a breaker in most homes. If that’s the case with you as well, check the circuit breaker. If it’s tripped, you need to reset it and that’ll solve the issue.

Sometimes, you’d face an unwanted problem with your circuit breaker. It’ll keep on tripping even after you reset it. There are high chances that it’s due to a bad circuit breaker and you’d have to replace it.

But there are other potential reasons behind the continuous tripping of the circuit breaker as well. Check out my Rheem circuit breaker keeps tripping solution guide to learn more about those reasons and their fixes.

The other scenario is that the breaker is fine but there’s no power supply to your house. In that case, it should come back after a while. You can contact your local utility company to know the updates and get a timeline on when you can expect the power to come back.

ii) Tripped ECO

There’s a safety device in Rheem electric water heaters called the ECO. The ECO or the Electric Cut Off device is located above the heating element. It has direct contact with the tank surface.

The job of the ECO is simple  – to protect the users from scalding. So, the ECO automatically shuts off the power to the water heater when the water temperature gets too high.

How To Fix:

If the ECO in your water heater gets tripped, you can easily solve that issue. All you’ll have to do is press the reset button and that’ll do the trick. The reset button is located right above the upper thermostat. Once you press it, the heater will be up and running in no time.

reset button of rheem water heater

How To Reset Rheem Electric Water Heater?

Follow these simple steps to reset the water heater if the ECO got tripped:

  1. Turn off the power to the electrical heater by switching off the circuit breaker that supplies power to the heater. There should be a label on the left side that should point you to the right breaker in case you’re having trouble finding it.
  2. Then, you’ll have to remove the screws holding the upper panel access cover in place. You can use a Philips screwdriver to undo the screws. Then, set the screws aside and be careful not to lose them.
  3. Take off the access panel cover. Unfold or remove the insulation that you see after removing the cover. Then, you should have eyes on the red reset button. Press it to reset your heater.
  4. You should hear a clicking sound if the unit is reset. If there was no clicking sound, it means the heater wasn’t reset. It also indicates that the ECO wasn’t tripped in the first place and there’s another issue with your water heater. You need to keep on diagnosing the root problem in that case.
  5. But if the unit was reset, you’ve fixed the issue. You can put the insulation and the access cover back into their original positions. Then, turn the breaker back to the “On” position and restore the power supply to the heater.

Remember that it’s not a big deal if the ECO gets tripped once in a while. But if it gets tripped every now and then, something else is also wrong with your heater. It’s due to a faulty thermostat in most cases. But I’ll take a detailed look at thermostats in another section as I move on.

iii) Heating Element Failure

Another common issue behind getting no hot water or inadequate hot water is a failed heating element. There are usually two heating elements in most Rheem electric heaters.

They’re arguably the most important components of the water heater as it’s their job to heat the water. When any of them goes bad, the water will not be able to reach the desired point.

heating element of rheem water heater

Generally, it’s the upper heating element that fails if you get no hot water at all. On the other hand, you’d usually have a small quantity of hot water if the lower heating element has failed.

But those are just general speculations and won’t happen all the time. So, you should test both heating elements to be certain if any of them is really bad.

How To Test Rheem Electric Heater Heating Element?

Testing the heating element is an easy process if you have a multimeter. All you need to do is collect the readings and that’ll determine if the heating element is good or not. Follow these steps to test the heating element in your electric water heater:

  1. Shut off the power to your water heater by turning off the circuit breaker that goes to the heater.
  2. Remove both the upper and lower access cover panels and the insulations in front of the heating elements.
  3. You’ll see some plastic covers at this stage. They’re snapped into their position. So, move them back and forth and remove them. The heating element is located right under the thermostat. You’ll only see the outside screws of the heating element.
  4. Before testing the heating element, you should check that your multimeter is working properly. Touch the two probes of the multimeter with one another. If you get a reading between 2-5 Ohms, it’s working correctly.
  5. Now, it’s time to double-check if the power supply is truly off. Set the multimeter to 750 ACV and touch the thermostat screws with the multimeter probes. If you get a small reading, then you can be certain that the power supply is actually turned off.
  6. Now, you’re ready to test the heating element. Set your multimeter to the lowest Ohm settings. Touch the probes of the multimeter to the heating element screws. You can connect the probes to any of the screws. It doesn’t matter which way you go. Note down the readings.
test the heating element of rheem water heater

If the reading was between 10 to 16 Ohms, that means the heating element in your heater is okay. If the reading is outside that range, that means you have a bad heating element.

Make sure you check both the heating elements following the procedure you learned above. You’ll have to follow the same steps for the other heating element. If the reading is outside the range on that one as well, that means the other heating element has also gone bad.

How To Fix:

If you have a bad heating element, it’s not possible to repair it. A bad heating element is usually severely corroded as well. Here’s a picture of what a completely corroded heating element looks like:

bad heating element

You’ll have to replace the faulty heating element to get your heater to work again. Don’t worry, I’ve broken down the process of replacing the heating element into easy steps.

How To Replace Rheem Heater Heating Element?

Make sure you get the right replacement part when you’re replacing the heating element. There should be a sticker on your water heater showing the correct configuration. Here’s an example of what you need to look for:

replacing the heating element

With that said, you’ll also need an element wrench to remove the old heating element and install the new heating element. With that said, here are the steps you need to follow to replace the heating element:

  1. Turn off the power to the heater and wait for it to cool down. Then, remove the upper panel access cover. Unfold the insulation and remove the plastic cover to access the thermostat.
  2. Drain the water heater to a level that’s below the heating element you want to replace. If you’re replacing the upper heating element, you don’t have to drain the tank all the way. If you’re going to replace the lower heating element, you should drain the entire tank.
  3. Draining the heater is an easy process. All you have to do is attach one end of the garden hose to the drain valve and the other to a floor drain. Then, open the drain valve and let the water go out.
  4. Next, you’d have to remove the heating element. Disconnect the wires from the screws of the heating element first. You’ll have to loosen the screws to do it.
  5. Now, it’s time to remove the old heating element. Use an element wrench to loosen the heating element and pull it out.
  6. Then, put the new heating element in place of the old one. Tighten it with the element wrench, and put everything back in place. Turn on the cold water supply and check for leaks.
  7. If there are no leaks, you did a great job replacing the heating element. If there are leaks, shut off the cold water supply immediately and tighten the heating element. Keep tightening the heating element until water stops leaking out of it.

That’s how easy it is to replace the heating element on your own. Wait for the tank to get filled with water before you turn on the power to the heater. You have to do that because the heating element can get shorted again if the tank isn’t filled with water.

Once the tank is full, turn on the heater. Wait for at least a couple of hours for the water to get your desired temperature. Once that period has passed, you can start enjoying the hot water from your heater once again.

Keep in mind that the specific procedure could vary depending on the model you own. That’s because the type of heating element you have could be different from the one I showed.

For example, if you have a screw-in type heating element, you’ll need an ½ inch element wrench. For phalange heating elements, it normally requires a ⅜ heating element. As the first type is more common in Rheem electric heaters, that’s the one I covered.

iv) Thermostat Issues

The two most dangerous culprits when it comes to an electric water heater are the heating element and the thermostat. If it’s not the heating element that’s causing the issue, you should check the thermostat next.

The most common reason why you have inadequate hot water is often because you’ve set the thermostat too low. But that’s an easy problem that you can fix without too much trouble.

thermostat of rheem water heater

Unfortunately, a thermostat could also go bad and cause this issue. Especially, if the ECO was tripped. When you have a bad thermostat, it won’t sense that the desired temperature was reached.

So, it’ll send signals to the heating element to heat the water. At one stage, the water will be exceedingly hot and the ECO will get tripped. Then, the power supply to the heater will be cut off and the water will go cold.

Alternatively, a faulty thermostat may also think that the desired temperature has been reached when the real temperature is actually a lot lower. So, it’ll signal the heating element to stop heating the heater. The water will stay cold in this case and you’d get lukewarm water or very little hot water.

How To Test Rheem Electric Heater Thermostat?

Thermostats are among the most expensive components of an electric water heater. So before you get a replacement part, you should confirm whether it’s actually bad or not. Otherwise, it’ll be a huge waste. Follow these steps to test the thermostat in your water heater:

  1. Turn off the water heater, wait for it to cool down, and remove both access panel covers. Remove the protective insulation and the white plastic cover as well to access the thermostat.
  2. Next, remove the wiring connections from the thermostat to check for continuity. When you loosen the screws, the wiring will be disconnected and you can proceed with the test.
  3. Place the black probe of the multimeter on the topmost left screw of the thermostat. Then, place the red multimeter on the red screw below that. If there’s no continuity at that point, you can conclude that you have a bad thermostat.
  4. Similarly, check the two screws on the top on the right side of the thermostat. Again, no continuity indicates a bad thermostat. If there’s continuity, everything is good so far.
test the thermostat of rheem water heater

Remember that no continuity in any of the above points is conclusive proof that you have a faulty thermostat. But if the thermostat has continuity, that’s still not enough to conclude that you have a good thermostat.

The next part of the diagnosis is tricky as it also depends on the water temperature inside the tank. So, be attentive and follow the next set of instructions carefully.

Touch the black lead to the common terminal and the red lead to the upper heating element terminal. If the water temperature is below the desired temperature, the meter should show close to 0 Ohms of resistance. So, it should have continuity.

It makes sense as the heating element would be active and heating the water if the desired temperature isn’t reached. Then, keep the black lead at the common terminal and connect the red lead to the lower heating element screw. If the first test had continuity, the second test shouldn’t have any continuity.

But if your desired temperature has been achieved, the first test would have no continuity. It should only have continuity only when the common terminal and the lower element screw are tested.

The point is that only one of the above tests should have continuity at a time. If none of them have continuity, you have a bad thermostat. If both of them have continuity, you also have a faulty thermostat.

Take your time to check the lower thermostat by following the same steps shown above. The same rules apply. If you don’t have continuity at any of the given points, you have a bad thermostat.

How To Fix:

The first thing you’d have to do is to check if you’ve set the thermostat too low. Unfortunately, it takes a little work to adjust the temperature on an electric water heater.

You’d have to remove both access panels and adjust the temperature dials on the thermostats individually. You’ll need a flat-blade screwdriver to move the temperature dials. The only exception is when you have an electric water heater with a keypad.

You can just press the left or right arrow buttons to adjust the temperature in those heaters. Check out my Rheem temperature adjustment guide if you need more information on how to change the temperature.

But if you’ve tested the thermostat and it turned out to be faulty, you’d have to replace it with a new one. Replacing the thermostat isn’t a hard job. Keep on reading to learn how to do it.

How To Replace Rheem Heater Thermostat?

You can save a lot on labor charges by replacing the thermostat on your own. The good news is that it’s an easy process. You’ll only need the following tools to replace the thermostat on your own:

  • Replacement Thermostat.
  • Phillips Head Screwdriver.
  • Gloves for safety.
  • Slot screwdriver.
  • Needle nose pliers.

If you have the tools, you can start the process of replacing the thermostat. Here are the steps you should follow to replace the thermostat in your Rheem electric water heater:

  1. The first step in removing the thermostat is to access it. You already know how to do it if you have tested it. Just make sure that the power to the heater is off so that you don’t electrocute yourself. Wear a pair of safety gloves to protect yourself in case there are any power issues.
  2. Take notes of where each of the wires goes. Then, you’d be able to put them back in the right order after replacing the thermostat. You can also take a photo with your phone if you want to avoid taking notes.
  3. The next step is to remove the wiring connections with the thermostat screws. If you loosen the screws, the wiring will come off.
  4. Now, you’re ready to remove the thermostat. It’ll be locked in its place. If you pull back on the tabs behind it, the thermostat will snap out. Then, you can pull it out and remove it.
remove the thermostat of rheem water heater
  1. Then, put the new thermostat in place of the old one. Push it into the tab from the top to lock it in place. Connect it to the right wires using the picture or the notes you took earlier.
  2. Once the thermostat is secure, all you have to do is put the heater back together. Attach the plastic cover, add the insulation, and screw the access cover back in.


So, that’s how you can replace the thermostat. Restore the power to your heater and see if everything works properly after that. Hopefully, changing the thermostat will solve your no-hot water problem.

v) Wiring Issues

Improper wiring is another possible culprit behind your Rheem electric heater not heating any water. Especially, if it’s a new installation and someone messed up the wiring system during installation.

There are a few things you should keep in mind regarding the wiring system. Some of them are:

  • The power supply voltage should match the requirement of the heater. You can find the voltage requirements and the watt load of the heater in the rating plate of your water heater.
  • The size of the circuit breakers and the copper wire should be of the right size according to the heater.
  • The electrical connections of the heater should be tight and the unit should be properly grounded.

How To Fix:

Check the points mentioned above and see if you can find any fault there. If you’re not electrically inclined, delegate the job to an expert electrician. Then, fix the root cause that’s causing the issue and your problem will be solved.

vi) Undersized Water Heater

It’s possible that your heater is working fine and you’re still not getting enough hot water. That happens when the hot water usage in your home exceeds the capacity of your water heater.

Your water heater can only produce a certain amount of hot water at a time. It depends on the tank size and the efficiency of the water heater. If you push the heater beyond its limits, it won’t be able to heat the water that fast.

For example, if you have a 60-gallon tank and you completely using all the water, the heater will need time to heat the water again. It’ll take at least a couple of hours for the new batch of cold water to get to your desired temperature.

This problem is normally created when multiple hot water faucets are used in a house at the same time. The water runs out quickly, the hot water gets depleted, and then, you have very little or no hot water.

How To Fix:

If it’s an issue that doesn’t occur frequently, the simple solution is to do nothing. Remember that nothing is wrong with your heater in this case. So, just wait for the heater to recover after the abnormal demand. Once it restores the water temperature, you can use the hot water again.

But if this issue occurs frequently, then you shouldn’t just sit around with it. You need to do something about it. You can come up with a schedule with your family members for hot water usage.

The goal is to make sure that multiple hot water faucets are not being used at the same time. If there’s no abnormal demand, you won’t run out of hot water. That’s the easiest solution you can try.

Another easy solution is to increase the desired temperature. If you do that, the hot water won’t run out so quickly. The new batch of cold water will also be heated faster that way.

So, it’ll minimize the chances of running out of water. But you should only increase the temperature if there are no kids or elderly people in your house. Otherwise, they could get scalded.

If that doesn’t work, you can install a mini water tank. It’ll essentially increase the storage capacity of the tank.

install a mini water tank

Even if that doesn’t solve your problem, you can upgrade to a bigger water heater that’s suited for the needs of your family.

vii) Plumbing Issues

Some plumbing mistakes can be the main reason why you don’t get enough hot water. The most common mistake is to reverse the cold and hot water lines. This problem will occur mostly in new water heaters during an installation mistake. So, if your new heater is causing this issue, it could be the reason.

Secondly, a leaking hot water faucet can also deplete the hot water stored in the tank. If there’s not a leaking faucet, it’s also possible that someone left a hot water faucet open.

leaking hot water faucet

Thirdly, there could be leaky pipes in the hot water side that could waste a lot of hot water. Even a small leak on the hot water side can be bad and cause the water to run out quickly.

How To Fix:

If you’re facing this issue in a new heater, there’s a strong possibility that it’s due to the hot and cold water lines being reversed. You can easily correct them and hopefully, that’ll fix the issue.

Secondly, you could have an open or leaky hot water faucet. If it’s open, you can close it again. If the faucet is leaky, you’ll have to replace it.

The worst-case scenario here is dealing with leaky pipes. You’ll have to consult a plumber to diagnose and fix this issue if you think it could be a possible culprit. Once you take care of the plumbing problems, you should get hot water without any issues.

viii) Water Leaks

If the hot water in your tank is leaking due to any reason, it means there’ll be lesser hot water for your usage. So, water leaks on any point of the hot water side could lead to the problem of no or not enough hot water.

There are many points in an electric heater that could be leaking. Some of the most common ones are:

  • The drain valve.
  • The T&P relief valve.
  • The pipe connections.
  • The heating element.
  • The inner tank.

How To Fix:

You’d have to feel the potential leak sources with your hand and check for water residue. If any of the components I mentioned feel wet, there’s a good chance that it’s leaking.

Depending on the severity of the issue, you’d either have to tighten or replace the leaky part. The absolute worst thing that could cause a water leak is a corroded tank.

You’d have no option but to replace the entire heater if the tank is corroded. That’s because there’s no way to fix it. You can check out my Rheem water leaking stoppage guide to learn more about fixing water leaks in detail.

ix) Bad Dip Tube

The dip tube is connected to the cold water supply line and goes inside the tank. The main job of the dip tube is to direct the cold water to the bottom of the tank. It’s important because it increases the efficiency of the heater and keeps up a smooth supply of hot water.

dip tube of rheem water heater

The hot water usually stays at the top of the tank. So, when there’s a call for hot water, the water leaves from the top. Then, the cold water gets added to the bottom of the tank via the dip tube.

If the dip tube were to go bad, the cold water wouldn’t go to the bottom of the tank. It’d get mixed with the hot water at the top and reduce its temperature. That’s why you’d get insufficient hot water when there’s a bad dip tube.

A major sign of having a bad dip tube is if small plastic flakes come out of the hot water faucets. Those are pieces of the dip tube. If you see them, you can conclude that you have a worn-out dip tube.

How To Fix:

If you have a bad dip tube, you’ll have to replace it with a new one. Thankfully, replacing the dip tube is a relatively easy job. Make sure you get the right replacement dip tube for your water heater before you change it. With that said, you can follow these steps to replace the dip tube:

  1. Turn off the water heater and let it cool down. Then, turn off the cold water supply and open a hot water faucet.
  2. Drain the water from the tank. You don’t have to drain the tank all the way. Only draining 8-10 gallons is enough as the goal is to only clear the distribution piping above the tank.
  3. Disconnect the cold water supply line at the top of the heater using an adjustable wrench. Then, remove the plastic shroud to access the dip tube.
  4. Then, turn the dip tube counterclockwise using a pipe wrench to make it loose. If it’s too tight and won’t budge, get someone to hold the tank. Then, spin it again until it comes loose. Then, you can pull it out.
  5. Cut the new dip tube to the size of the old one. Attach Teflon tape to the threaded portion of the dip tube so that it makes a tight seal. Then, put it in place of the old one and tighten it with the pipe wrench.
  6. Once you ensure the new dip tube is secure in its position, you can reverse engineer the above steps to complete the installation.

Hopefully, those instructions will be enough to help you replace the dip tube yourself. Check out my guide on replacing the dip tube if you need detailed instructions on how to do it.

x) Colder Water

If you’re getting less hot water during colder weather, it’s completely normal. There’s not anything wrong with your heater in this case. I’ve still mentioned it just so that you can be aware of the situation.

It’s obvious that the heater will take longer to heat the water if the water supply is colder. So, don’t worry – your heater is fine.

How To Fix:

You can turn up the temperature settings in the thermostat. If you do that, the cold water will be heated faster. You’d have to access each of the thermostats individually and set the temperature in them.

But keep in mind that increasing the temperature puts the elderly and children at a higher risk of scalding. If you don’t have those concerns, you can raise the temperature without thinking too much.

However, you shouldn’t raise the temperature if people of that age group are in your house. You just have to be a little patient and wait a little longer for the hot water to ensure everyone’s safety. It’s still better to be safe than sorry. Though you’ll have to wait longer for hot water, you’ll have peace of mind.

FAQs:

What temperature should I set the thermostat at?

Setting the gas control thermostat at a temperature of 120°F is safe for adults. You can turn it down even further if you have a child. If you want to increase the temperature, use thermostatic mixing valves.

Why is my new Rheem gas water heater leaking?

It’s usually condensation and not a water leak. It’s common for condensation to form in new water heaters and they tend to go away when the tank warms up.

Can you clean the main burner in a Rheem gas water heater?

Yes, you should check the burner periodically and clean the burner when it gets dirty. You’d have to pull the burner out to clean it. You can use a mild detergent and scrub the burner to get the dirt out of it.

How long does a Rheem gas water heater last?

It depends a lot on how much it’s used and how well it’s maintained. But if you take good care of your Rheem gas water heaters, they’ve been known to last for more than 15 years.

Why can’t I set the temperature above 140°F in my Rheem water heater?

A water heater with a keypad can be locked. That’s why you’re not able to set it above 140°F. Press both arrow buttons together for 3 seconds to unlock the keypad. Then, you can set the heater to your desired temperature.

What causes a rumbling sound in my Rheem electric water heater?

A rumbling or popping noise coming from the tank indicates the build-up of sediments. You should drain the tank to get rid of the sediments and solve this issue.

Why should you use thermostatic mixing valves?

They are used to reduce the water temperature at the hot water faucet to reduce scalding. Thermostatic mixing valves are particularly useful if you have children or old people in your home.

Why does brown water come out of the hot water faucet?

If you have brown or discolored water coming out of the hot water faucet, it there’s severe corrosion inside the tank. You should immediately replace the anode rod in this situation. If that doesn’t solve the issue, you’d most likely have to replace the entire tank.

Conclusion

Now, you know the primary reasons behind the Rheem water heater not heating and how you can fix them. I’ve talked about the solutions for both gas and electric heaters. You need to be patient and diagnose each of the potential culprits that can lead to the no hot water issue.

Hopefully, it’ll be an easy fix and you won’t have to replace anything expensive. Feel free to check out my Rheem gas water heater guide if you’re facing other issues with your water heater.

Leave a Comment
